● Independent hydraulic system, both feed and clamping are driven by hydraulic pressure.
● Very suitable for finished product cutting.
● The efficiency is 2 times higher.
● One-time cutting and forming.
● Easy to operate.
● Lower noise.
● No dust.
● There is no burr inside and outside the incision.

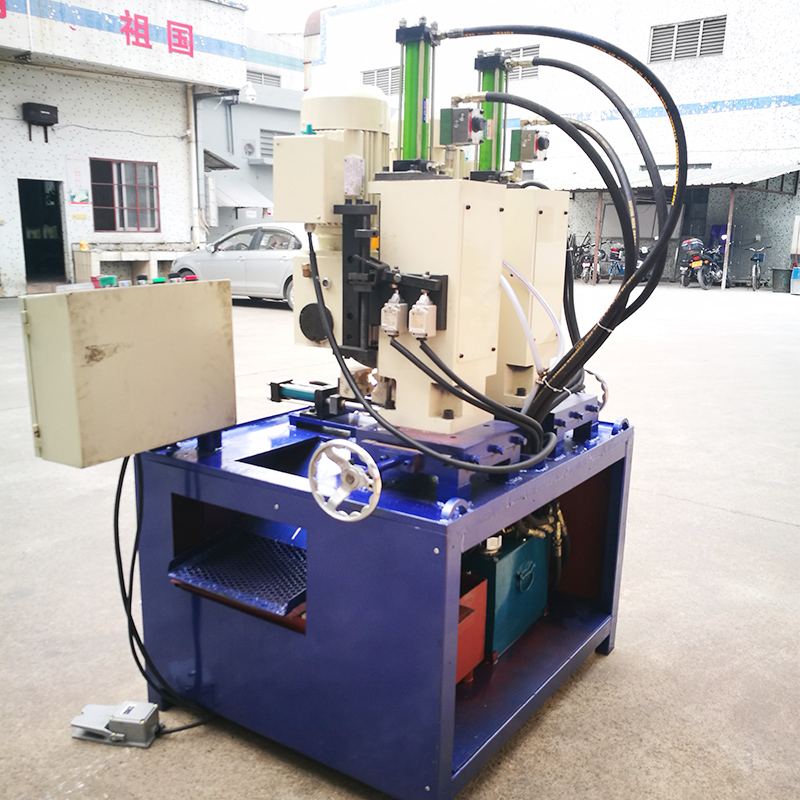

Specification | 325 Double Head Cutting Machine |
Processing Range (MM) | 10mm-76mm |
Workpiece Wall Thickness (MM) | 0.3-2.0mm |
Molding Length (MM) | 50-750mm |
Saw Blade Size | Diameter: 325mm, internal control 25.4mm |
Saw Blade Speed | 350r/min |
Main Motor(KW) | 7kw |
Feeding Method | hydraumatic |
Oil Pressure(KG/CM) | 2.-4Mpa |
Fuel Tank Capacity | 55L |
Weight | 500kg |
