● The clamping mold adopts an imported type, which has strong clamping force and is not easy to wear; there is no phenomenon and doubts of left and right swings or jumps when working, and the speed is uniform.
● This machine adopts belt drive with high dimensional accuracy; the transmission part is flexible and reliable.
● Fast, convenient, efficient, save labor and processing times.
● High efficiency and high stability.
● Small.
● Safe.
Specification | MY-C38 | MY-C50 | MY-C76 | MY-C76-400 |
Mold Size(W*L*H) | 300*36*44 | 400*50*44 | 600*60*50 | 800*60*50 |
Processing Range (MM) | ∅10-∅38 | ∅16-∅51 | ∅12-∅76 | ∅28-∅76 |
Workpiece Thickness (MM) | 0.5-1.2 | 0.7-1.5 | 1.0-2.0 | 1.0-2.0 |
Forming Length (MM) | 300 | 400 | 600 | 800 |
Molding Time(S/Second) | 5-10 | 5-10 | 5-10 | 20-60 |
Main Motor(KW) | 3.0 | 5.5 | 7.5 | 15 |
Spindle Speed(Rev/Min) | 300 | 200 | 200 | 200 |
Height of Spindle Center | 1000 | 1000 | 1000 | 1000 |
Total Weight(KG) | 1000 | 1300 | 4000 | 4600 |

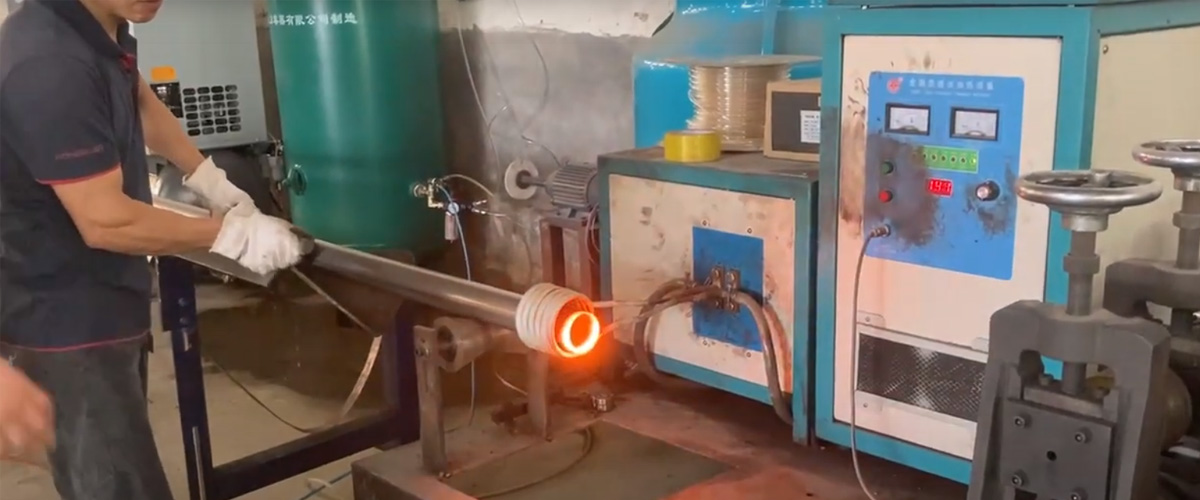

According to the drawings of the customer's small pipe, confirm the pipe diameter, material, and thickness, and use our semi-automatic pipe tapering machine (because the high-frequency machine heating pipe needs to be used in the front section, you need to use our semi-automatic cone pipe machine, which is safer)
